ทรานซิสเตอร์ TIP29C TIP30C TIP31C TIP32C TIP41C TIP42C Tr transistor NPN PNP TO-220

คำอธิบาย

✔ TIP31C
Features
Package Type: TO-220
Transistor Type: NPN
Max Collector Current(IC): 3A
Max Collector-Emitter Voltage (VCE): 100V
Max Collector-Base Voltage (VCB): 100V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 40 Watt
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 10 – 50
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

✔✔ TIP32C
Features
Package Type: TO-220
Transistor Type: PNP
Max Collector Current(IC): –3A or -3000mA
Max Collector-Emitter Voltage (VCE): –100V
Max Collector-Base Voltage (VCB): –100V
Max Emitter-Base Voltage (VEBO): –5V
Max Collector Dissipation (Pc): 40W
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 10 – 50
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

✔ TIP41C
Features
Package Type: TO-220
Transistor Type: NPN
Max Collector Current(IC): 6A or 6000mA
Max Collector-Emitter Voltage (VCE): 100V
Max Collector-Base Voltage (VCB): 100V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 65W
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 15 – 75
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade

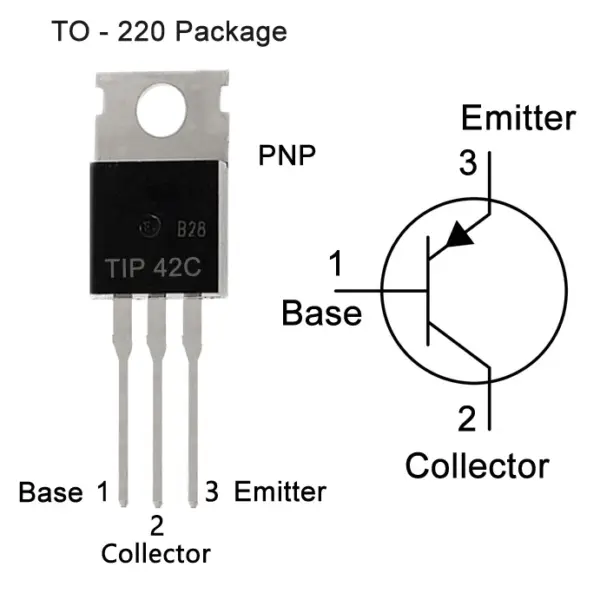

✔✔ TIP42C
Features
Package Type: TO-220
Transistor Type: PNP
Max Collector Current(IC): –6A
Max Collector-Emitter Voltage (VCE): –100V
Max Collector-Base Voltage (VCB): –100V
Max Emitter-Base Voltage (VEBO): –5V
Max Collector Dissipation (Pc): 65 Watt
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 15 – 75
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
